Architecture Overview

Introduction

The nRF5340 DK Matter Smart Light is built using a dual-core architecture with C++ Object-Oriented Programming (OOP) on top of the Zephyr RTOS. The system leverages the nRF5340’s dual ARM Cortex-M33 processors to separate application logic from radio protocol handling, following namespace-based modularization and inter-processor communication patterns.

Dual-Core System Architecture

The application utilizes both cores of the nRF5340:

• APP Core (Cortex-M33 @ 128 MHz): Matter protocol, Thread networking, LED/button control

• NET Core (Cortex-M33 @ 64 MHz): BLE radio, 802.15.4 radio, OpenThread MAC/PHY

Architecture Diagram

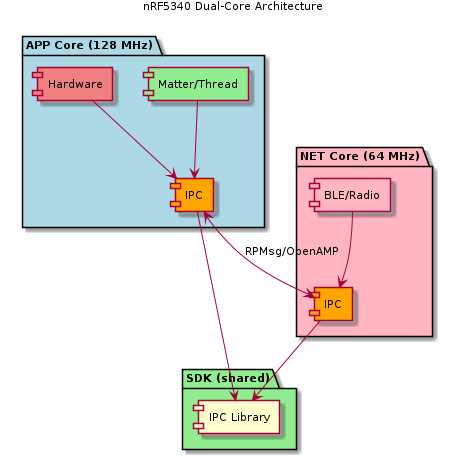

nRF5340 Dual-Core System Architecture

Hardware Resources

Core	Flash Usage	RAM Usage	Primary Responsibilities
APP Core	75 KB (7.16%)	34 KB (7.40%)	Matter, Thread, UI
NET Core	142 KB (54.26%)	31 KB (47.25%)	BLE, 802.15.4 radio

Design Patterns

Namespace-Based Modularization

All SDK modules use hierarchical C++ namespaces for clear organization:

namespace smarthome {
    namespace protocol {
        namespace matter {
            class AppTask { /* ... */ };
            class LightEndpoint { /* ... */ };
        }

        namespace thread {
            class ThreadNetworkManager { /* ... */ };
        }

        namespace ble {
            class BLEManager { /* ... */ };
        }
    }

    namespace hw {
        class ButtonManager { /* ... */ };
        class UartManager { /* ... */ };
    }

    namespace ipc {
        class IPCCore { /* ... */ };
    }
}

// NET core uses separate namespace
namespace net {
    class NetCoreManager { /* ... */ };
}

Namespace Hierarchy

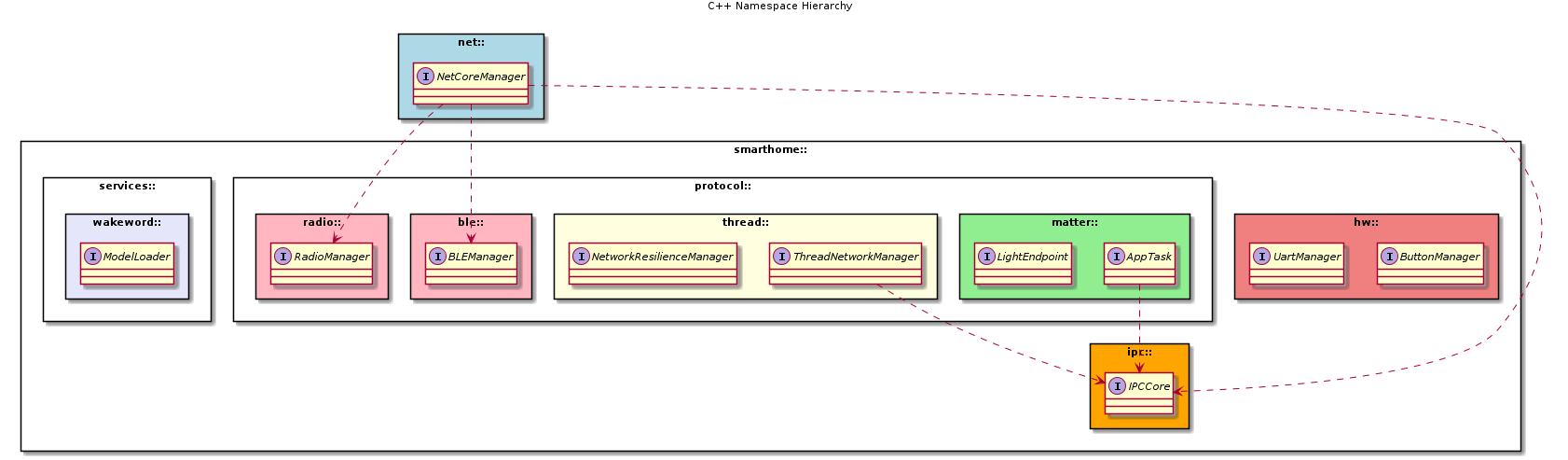

C++ Namespace Structure

smarthome::
├── hw::
│   ├── ButtonManager
│   └── UartManager
│
├── protocol::
│   ├── matter::
│   │   ├── AppTask
│   │   ├── LightEndpoint
│   │   └── CommissioningDelegate
│   │
│   ├── thread::
│   │   ├── ThreadNetworkManager
│   │   └── NetworkResilienceManager
│   │
│   ├── ble::
│   │   └── BLEManager
│   │
│   └── radio::
│       └── RadioManager
│
├── ipc::
│   ├── IPCCore
│   └── MessageType (enum)
│
└── services::
    └── wakeword::
        └── ModelLoader

net::                    (NET core only)
└── NetCoreManager

Note

PlantUML diagram available in CI/CD builds at doc/diagrams/namespace_hierarchy.puml

Function Pointer Callbacks

The application uses function pointers instead of std::function due to Zephyr’s minimal C++ support:

// Define callback type
using ButtonCallback = void (*)(bool pressed);

// Static callback function
static void button_callback(bool pressed) {
    if (pressed) {
        // Handle button press
    }
}

// Register callback
ButtonManager::getInstance().setCallback(button_callback);

Inter-Processor Communication

The two cores communicate via RPMsg/OpenAMP protocol.

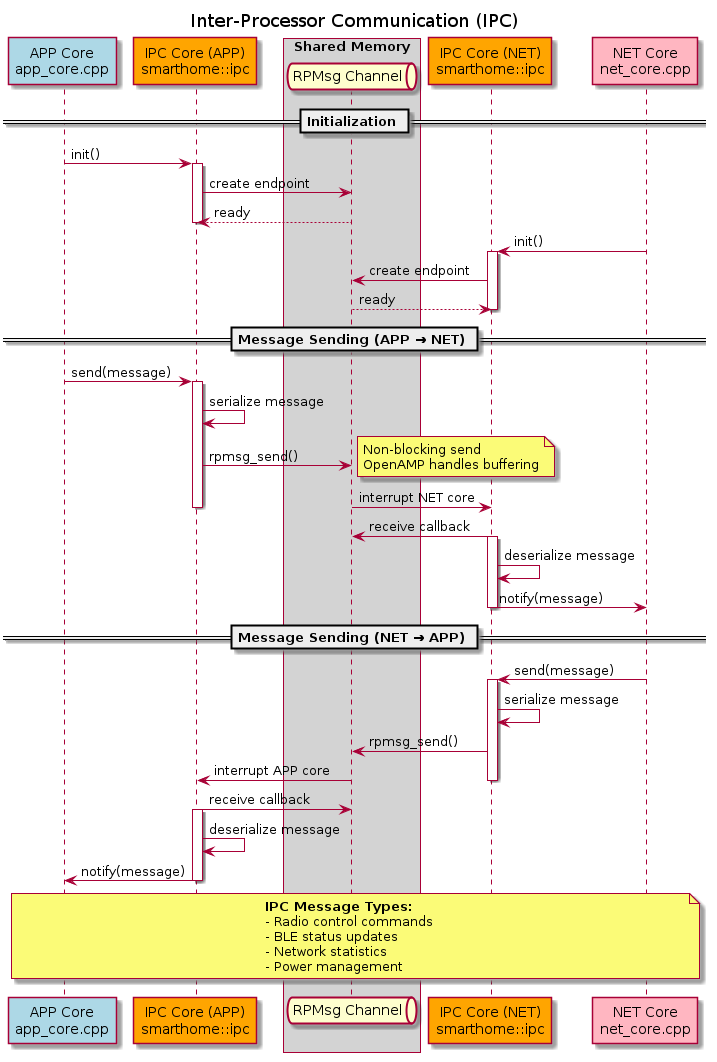

Inter-Processor Communication Sequence

Hardware interrupts for low latency * Asynchronous bidirectional communication * Message buffering in OpenAMP

C++ Features Used

Minimal C++ Standard Library

The application uses C++17 with minimal standard library support:

• No STL containers (std::vector, std::map, etc.)

• No std::function (use function pointers)

• No exceptions (-fno-exceptions)

• No RTTI (-fno-rtti)

• Use C headers (<string.h> not <cstring>)

• Manual memory management

Example patterns:

// Use function pointers, not std::function
using Callback = void (*)(int value);

// Use C headers
#include <string.h>  // NOT <cstring>
#include <zephyr/kernel.h>

// Use Zephyr kernel types
K_KERNEL_STACK_MEMBER(stack, 1024);  // NOT K_THREAD_STACK_MEMBER

// Include kernel.h BEFORE namespace declarations
// to avoid scoping issues with k_timer, k_mutex, etc.

Directory Structure

Source Code Organization

  src/
  ├── app_core/                     # APP Core entry point
  │   ├── app_core.cpp              # Main application logic
  │   └── cpp_support.cpp           # C++ runtime support
  │
  ├── net_core/                     # NET Core entry point
  │   ├── net_core.hpp              # NET core manager
  │   └── net_core.cpp              # Network processor state machine
  │
  ├── app_core/                     # APP Core entry point
│   ├── app_core.cpp              # Main application logic
  └── sdk/                          # Shared SDK library (both cores)
      ├── protocol/                 # Protocol implementations
      │   ├── matter/               # Matter (CHIP) protocol [APP]
      │   │   ├── app_task.cpp
      │   │   ├── light_endpoint.cpp
      │   │   └── commissioning_delegate.cpp
      │   │
      │   ├── thread/               # Thread networking [APP]
└── sdk/                          # Shared SDK library (both cores)
    ├── protocol/                 # Protocol implementations
    │   ├── matter/               # Matter (CHIP) protocol [APP]
    │   │   ├── app_task.cpp
    │   │   ├── light_endpoint.cpp
    │   │   └── commissioning_delegate.cpp
    │   │
    │   ├── thread/               # Thread networking [APP]
    │   │   ├── thread_network_manager.cpp
    │   │   └── network_resilience_manager.cpp
    │   │
    │   ├── ble/                  # Bluetooth Low Energy [NET]
    │   │   └── ble_manager.cpp
    │   │
    │   └── radio/                # IEEE 802.15.4 radio [NET]
    │       └── radio_manager.cpp
    │
    ├── hw/                       # Hardware abstraction [APP]
    │   ├── button/
    │   │   └── button_manager.cpp
    │   └── uart/
    │       └── uart_manager.cpp
    │
    ├── ipc/                      # Inter-processor comm [BOTH]
    │   └── ipc_core.cpp
    │
    └── services/                 # Higher-level services
        └── wakeword/             # ML model loading
            └── model_loader.cpp

Legend:

• [APP] - Used only by APP core

• [NET] - Used only by NET core

• [BOTH] - Shared by both cores

Note

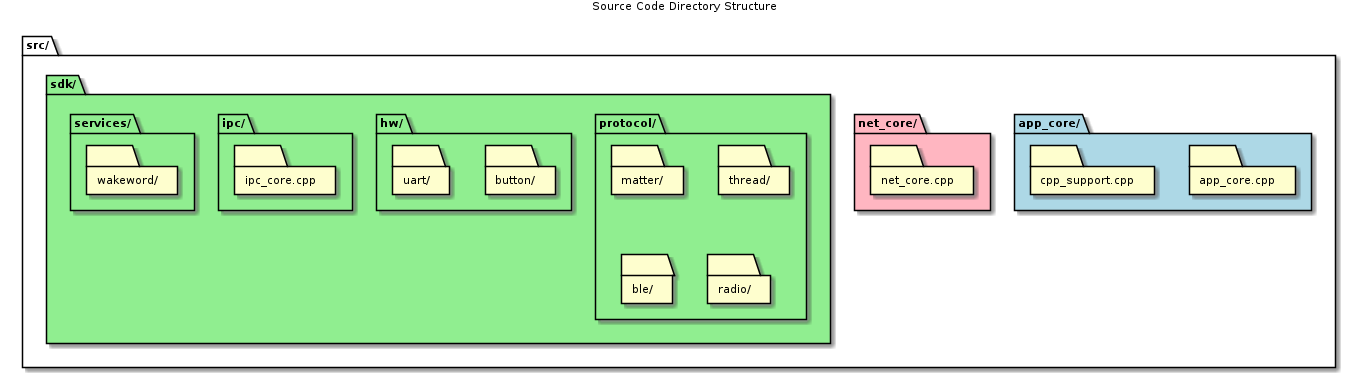

PlantUML diagram available in CI/CD builds at doc/diagrams/directory_structure.puml``ucture.puml for PlantUML diagram with color coding.

Module Responsibilities

APP Core Modules

AppTask (sdk/protocol/matter/)

Matter application state machine and event handling

LightEndpoint (sdk/protocol/matter/)

Matter endpoint for LED control (on/off, brightness)

ThreadNetworkManager (sdk/protocol/thread/)

Thread network initialization and management

NetworkResilienceManager (sdk/protocol/thread/)

Network health monitoring and recovery

ButtonManager (sdk/hw/button/)

GPIO button input with debouncing

UartManager (sdk/hw/uart/)

Serial communication interface

NET Core Modules

NetCoreManager (net_core/)

Network processor state machine and coordinator

BLEManager (sdk/protocol/ble/)

Bluetooth Low Energy advertising and connections

RadioManager (sdk/protocol/radio/)

IEEE 802.15.4 radio control and MAC layer

Shared Modules

IPCCore (sdk/ipc/)

Inter-processor communication using RPMsg/OpenAMP Used by both APP and NET cores

ModelLoader (sdk/services/wakeword/)

Machine learning model loading service

Inter-Core Communication

The APP and NET cores communicate via the IPC Core module using Zephyr’s OpenAMP/RPMsg:

Message Types

• Radio Control: Commands from APP to NET for radio configuration

• BLE Status: Connection state updates from NET to APP

• Network Statistics: Link quality and performance data

• Power Management: Sleep/wake coordination

Communication Flow

1. APP core calls IPCCore::send(message)

2. Message serialized and placed in shared memory

3. NET core interrupted via IPC mechanism

4. NET core IPCCore::receive() callback invoked

5. Message deserialized and processed

See Inter-Processor Communication for detailed IPC documentation.

• Callback notification

Inter-Module Communication

The modules communicate through several mechanisms:

1. Direct Function Calls: Modules call each other’s public methods

2. Callbacks: Asynchronous event notification using function pointers

3. Message Queues: Thread-safe data passing (see Inter-Processor Communication)

4. Semaphores: Resource protection and synchronization

Initialization Sequence APP Core Initialization ========================

The APP core follows this initialization sequence in app_core.cpp:

extern "C" int main() {
    // 1. Initialize hardware managers
    smarthome::hw::ButtonManager::getInstance().init();
    smarthome::hw::UartManager::getInstance().init();

    // 2. Initialize IPC for inter-core communication
    smarthome::ipc::IPCCore::getInstance().init();

    // 3. Initialize Matter protocol stack
    smarthome::protocol::matter::AppTask::getInstance().init();
    smarthome::protocol::matter::LightEndpoint::getInstance().init();

    // 4. Initialize Thread networking
    smarthome::protocol::thread::ThreadNetworkManager::getInstance().init();

    // 5. Start Matter application
    smarthome::protocol::matter::AppTask::getInstance().startApp();

    // 6. Main thread sleep
    while (1) {
        k_sleep(K_FOREVER);
    }
}

NET Core Initialization

The NET core follows this initialization sequence in net_core.cpp:

extern "C" int main() {
    // 1. Create NET core manager
    net::NetCoreManager net_core;

    // 2. Initialize (sets up BLE, Radio, IPC)
    net_core.init();

    // 3. Run state machine
    net_core.run();  // Never returns
}

The NET core manager internally initializes:

1. smarthome::ipc::IPCCore - Inter-core communication

2. smarthome::protocol::ble::BLEManager - Bluetooth radio

3. smarthome::protocol::radio::RadioManager - 802.15.4 radio

Build System

The application uses CMake with Zephyr’s build system:

• CMakeLists.txt: Defines source files for both cores

• prj_nrf5340_app.conf: APP core configuration

• prj_nrf5340_net.conf: NET core configuration (requires CONFIG_STATIC_INIT_GNU=y for C++)

• Kconfig: Custom configuration symbols

• Device Tree Overlays: Board-specific hardware configuration

Build Configuration

# APP Core sources
if(CONFIG_SOC_NRF5340_CPUAPP)
    target_sources(app PRIVATE
        src/app_core/app_core.cpp
        src/sdk/protocol/matter/app_task.cpp
        src/sdk/protocol/thread/thread_network_manager.cpp
        src/sdk/hw/button/button_manager.cpp
        src/sdk/ipc/ipc_core.cpp
    )
endif()

# NET Core sources
if(CONFIG_SOC_NRF5340_CPUNET)
    target_sources(app PRIVATE
        src/net_core/net_core.cpp
        src/sdk/protocol/ble/ble_manager.cpp
        src/sdk/protocol/radio/radio_manager.cpp
        src/sdk/ipc/ipc_core.cpp
    )
endif()

Memory Layout

nRF5340 Memory Regions:

Core	Region	Size	Usage
APP	Flash	1 MB	7.16% (75 KB)
APP	RAM	448 KB	7.40% (34 KB)
NET	Flash	256 KB	54.26% (142 KB)
NET	RAM	64 KB	47.25% (31 KB)

The NET core uses more flash due to the OpenThread and BLE protocol stacks.

See Also

• Inter-Processor Communication - IPC details

• BLE Service - BLE implementation

• WiFi Service - WiFi/Thread networking
